What I did is design a set of custom PCBs to replace the original GB PCBs and clean up the project significantly. Even though i was capable of designing the battery charger and audio amp circuits myself, I took the lazy route and leveraged some readily available designs from Adafruit and copied the Layout and schematics into my project.
Specs,
Original Game Boy DMG-01 Case.
Custom Main PCB
Custom Cart PCB
Custom Button PCB with extra X - Y buttons.
Adafruit 3.2' SPI TFT screen
Mono 2.5W amplifier Circuit
2000mA hour LiPo Battery
Battery Charger circuit
Main PCB
Holds the Pi Zero in a cut out in the middle of the board. Bridges the Connections over to the Cart header for the Mircro SD card. Also bridges the required pins from the GPIO to the screen header. Has Micro USB port for charging. Has USB-A port for external devices. Holds the battery charger circuit and audio amp circuit. I will be using the basic PWM out gpio pin for audio. the audio on these games are pretty crude anyways. The battery connector sticks through one of the openings in the battery compartment with some modification to the opening. I decided not to try to bring out the HDMI port as it would have been very complicated and using a SPI screen the output of the HDMI is the same very low resolution of the built in screen. I am also using the extra GPIO pins for the buttons instead of using a USB device like the teensy. this eliminates the need for a USB hub if you want a USB port on the outside.
Cart PCB
Common Ground Dmg Button Pcb Key
replaces the cart board with a custom board that holds the Micro SD card. Replaces the card edge connector with a female 0.1 pin header. I will post pictures of the board layout software, but the actual implementation will become more clear once I have the boards on monday.Button PCB

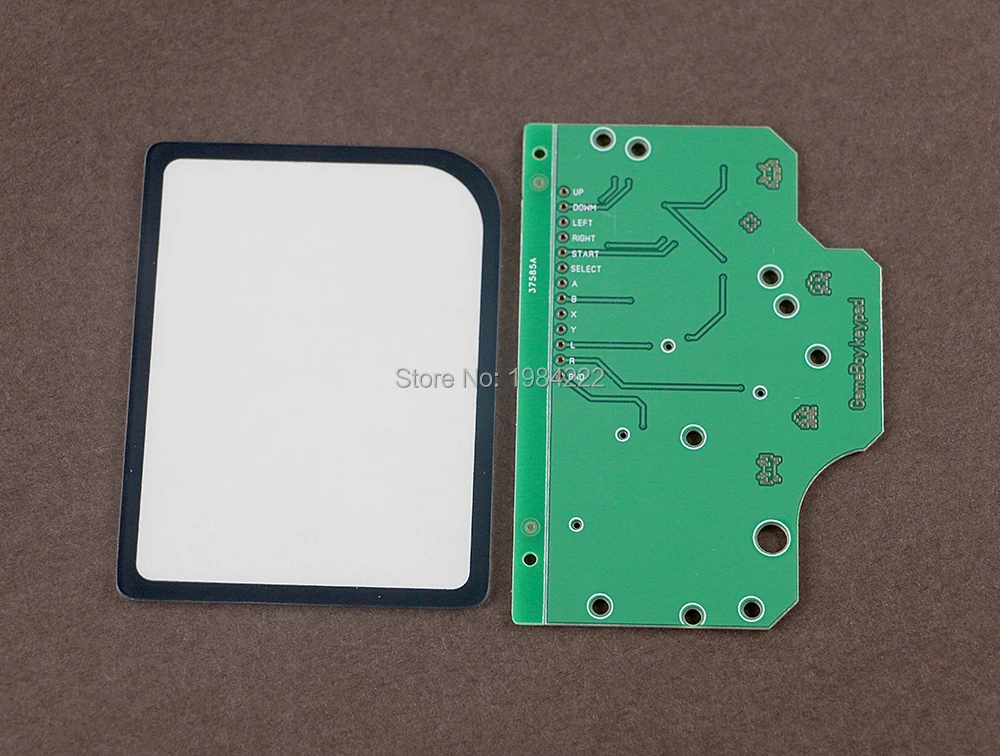

There were existing options for the DMG-01, but they only had A and B buttons, I used the super game girl board at first for prototyping, but it wasnt really designed for the DMG GB even though it was based on the original 2 button PCB--ABXY button pads didn't line up. I decided to make my own board specifically for the DMG GB with the extra X and Y buttons. I am selling the extra boards on Ebay. I received them today and have pictures.
http://www.ebay.com/itm/231974209588?ss .. 1555.l2649
Common Ground Dmg Button Pcb Replacement
Pictures and video.Common Ground Dmg Button Pcb Tool
Video of GPIO mapped buttons and Adafruit screen working in Prototype form.
https://www.youtube.com/watch?v=GM_RlXi .. e=youtu.be
Main board and Cart board Panelized (Layout Software screen shot)
Button Board PCB
